Fletcher-class Destroyers

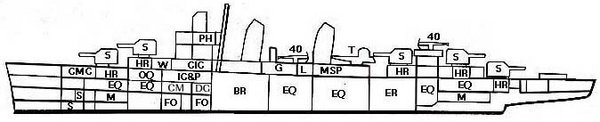

Layout & Arrangement

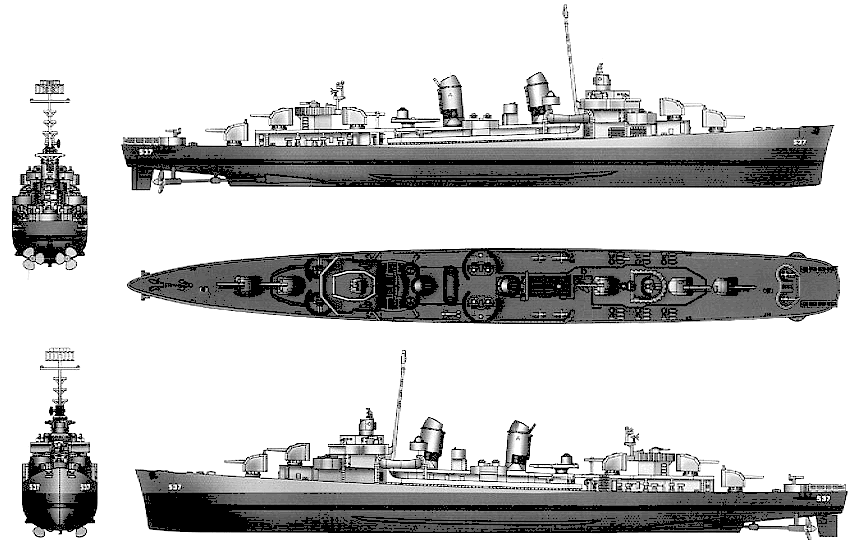

You can also view an interactive general blueprint of the Fletcher class as built by the Bath Iron Works.
| Abbr. | Compartment | Abbr. | Compartment |
|---|---|---|---|
| 40 | 40mm AA guns | G | Galley |
| 5 | 5”/38-caliber Guns | HR | Ammunition handling room |
| BR | Boiler room | IC&P | Interior Communications & Plot |
| CIC | Combat Information Center | L | Laundry |
| CM | Cold Storage | M | Magazine |
| CMC | Chief Petty Officers’ Mess | MSP | Medical Stores & Electrical Shop |
| DC | Damage Control / Battle Dressing Station | OQ | Officers’ quarters |
| EQ | Enlisted quarters | PH | Pilot house |
| ER | Engine room | S | Sound (Sonar) Room |
| FO | Fuel Oil | T | Torpedoes |
| W | Wardroom |
See the Fletcher Class page for more details about blueprints that are available on this site.
